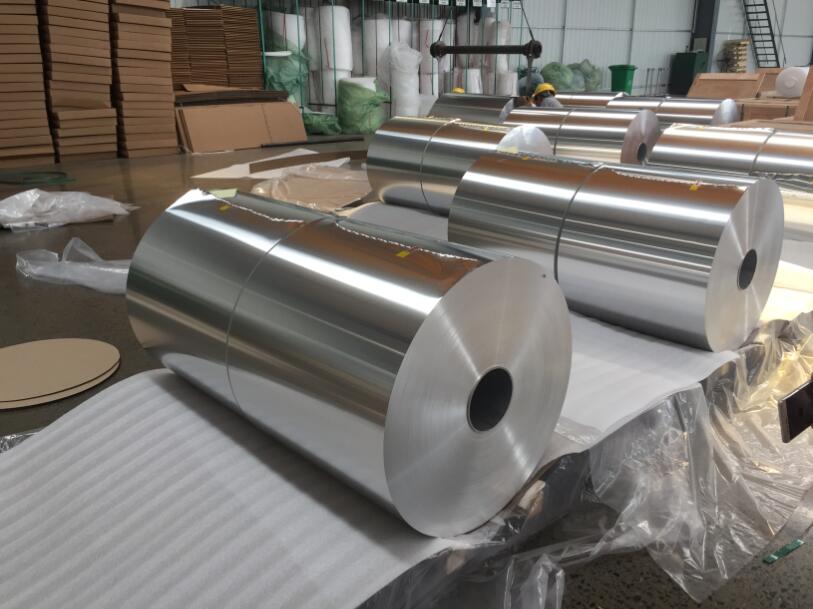

3003 aluminium alloy foil

Product introduction
3003 aluminium foil is a common product of AL-Mn series alloy. The product has excellent antirust properties,its strength is about 10% higher than 1100, and has good formability, dissolution resistance and corrosion resistance. It is used for processing parts with good formability, high corrosion resistance and good weldability.

Signi Aluminium stocks a variety of aluminium foil grades and sizes tailored to your needs and specifications.

Send us email

Specification

Performance

Application

3003 aluminium foil Technical Parameters

Alloy	3003 aluminium foil
Temper	O,H14,H16,H18,H22,H24
Thickness（mm）	0.016-0.2
Width（mm）	100-1600
Length（mm）	C
Typical products	Electronic foil,Food and Household Foil,honeycomb material foil,etc

Chemical Composition of 3003 aluminium foil：

Si	Fe	Cu	Mn	Mg	V	Zn	Ti	Others		Al
								Individual	Total
0.6	0.7	0.05-0.20	1.0- 1.5	-	-	0.10	-	0.05	0.15	Rem

Mechanical propertiesof 3003 aluminium foil：

Alloy	Temper	Thickness (mm)	Tensile Strength （Mpa）	Elongation (%) A50mm	Elongation (%) A100mm
3003	O	0.016-0.2	80-140	-	-
	H14	0.030-0.2	140-170	-	-
	H16	0.10-0.2	≥180	-	-
	H18	0.01-0.2	≥190	1.0	-
	H22	0.016-0.05	90-130	-	3.0
	H22	0.05-0.2	90-130	10.0	-
	H24	0.03-0.2	140-170	1.0	-
