Metallised aluminium foil

Metallised aluminium foil is calledmetallised films or laminated aluminium foil ,is a thin and uniform aluminium foil formed on the surface of a non conductor by vacuum evaporation. The non conductor usually adopts paper or different kinds of plastic thin film. As the aluminium coating can obviously improve the barrier properties of paper or plastic materials,etc base material to water vapor, gas, light and smell, the product has obvious economic property relative to aluminium foil and its composite products. So as a packaging material, it is a good substitute for aluminium foil and composite products.

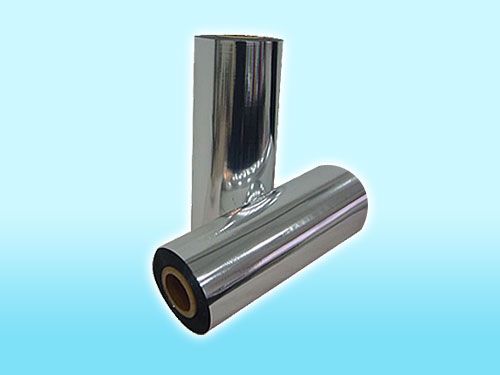

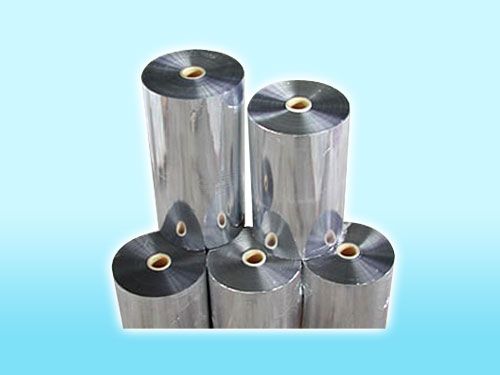

1,Metallised films Product Structure:
1）Metallised /Metalized PET / BOPP / CPPThickness 6-12 micron or Customized
2）Metalized PET / BOPP / BOPA / CPP + LDPEThickness 6-12 micron or Customized
3）Aluminium foilThickness 5-10 micron or Customized
4）Aluminium foil / PE(CPE)Thickness 5-10 micron or Customized
5）Aluminium foil / PET / PEThickness 5-10 micron or Customized
6）PET / Aluminium foil / PEThickness 5-10 micron or Customized
7）VMPET / Aluminium foilThickness 5-10 micron or Customized
8）Al(7mic)+LDPE(13mic)+LLDPE Film(25mic)
9）Al(9mic)+LDPE Film(25mic)
10）Al(7mic)+PET(12mic)+LDPE(25mic)
11）Al(9mic)+LDPE Film(30mic)
12）Al(7mic)+LDPE film(25mic)
13）Al(7mic)+PET(12mic)
14）LDPE(50mic)+Al(12mic)+LDPE(50mic)
15）PET+ Aluminium foil + PE
16）Can be custom-made & producedfrieproof,printed,colored



Metallised films Technical Date:

Item	Index
Product	Aluminium Foil
Tensile-strength(MD/TD)/Mpa	≤ 90
Elongation at break(MD/TD)/%	≥ 20
Tensile strength(MD)/Mpa	≥ 210
Tensile strength(TD)/Mpa	≥ 210
Moisture permeability/[g/(m2*24h*atm)]	≤ 30
Oxygen permeability/[ml/(m2*24h*atm)]	≤ 300
Fastness/grade of aluminized coat	≤ 3

Thickness:50-200 Micron or As customized
Regular Width: 1100mm,1250mm,1500mm or As customized
Length: 2000m to 3000m Per Roll or As customized
Color: Red, Silvery, Gloden, Blue, Green,etc

Metallised films Characteristics
1. No odor and toxicity, Environmentally-friendly
2. Light, soft, dust free, fire retardant, easy to install
3. Heat reflection, heat insulation, sound insulation, anti-radiation, anti-vibration and shielding insulation
4. Moisture barrier, sun-proof, water proof, heat insulation, saving energy consumed by cool air condition
5. Summer: Moisture barrier, sun proof, heat insulation, saving energy consumed by cool air condition
6. Winter: Heat preservation, central heating saving and remarkable energy-saving effect.

Metallised films Application
1.To laminate with other materials like Bubble,EPE / XPE foam ,Woven /Non-Woven fabric for building Heat Insulation Material.
2.Wrapping :Machine packing,Food packing,Medical packing,etc.
3. Moisture barrier, sun-proof, water proof, heat insulation, saving energy consumed by cool air condition
4.Winter: Heat preservation, central heating saving and remarkable energy-saving effect.. 5.Summer: Moisture barrier, sun proof, heat insulation, saving energy consumed by cool air condition

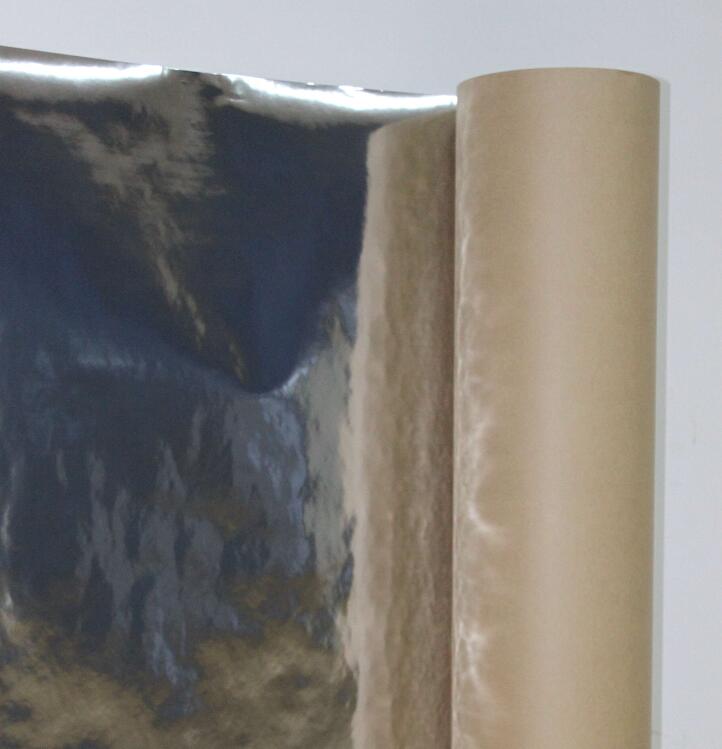

2.Metallised paper Structure:
1) Paper + PE
2)Metalized film/aluminium foil +Paper/Kraft
3) Metalized film/aluminium foil +Paper/Kraft +PE
4)Metalized film /aluminium foil+Paper/Kraft +woven fabric
5) Customized

Metallised paper Technical Date:
Width: 200-1500mm
Length: 38.1 M - 3000 M Per Roll
Thickness: 0.1-0.22mm
Weight: 105gsm
Standard Roll Dimensions:1.2M x 1000M/roll;
Food Grade

Metallised paper Application
To pack Tea and Coffee,rice, fruit,etc
To pack food like salt, sugar, cookies,etc
To pack medical supplies like tweezers and syringe, injector etc
To pack powdered products like coffee, powdered juice, powdered milk
To pack fluid juice, milk,etc
